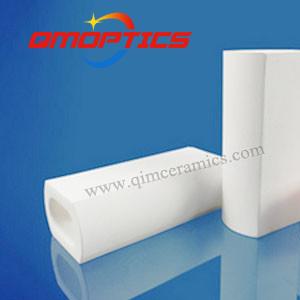

Ceramic Cavity Reflector for DEKA Thunder, Q-Plus
- Product Item : 10-005
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Glazed
- Application: DEKA Thunder, Q-Plus
Ceramic Cavity Reflector for DEKA Thunder, Q-Plus
The ceramic cavity reflector is used for DEKA Thunder, Q-Plus. Ready to ship anywhere in the world. It is premium quality with good working performance.Product Parameters
Product name
Cavity reflector
Material
Alumina Ceramic
Purity
99%
Surface
Full glazed
Length
103mm
Condition
Brand New
Application
DEKA Thunder, Q-Plus
Product Features
1. The surface is fully glazed for high reflectivity and easy cleaning;2. The reflectivity reaches 98% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 96%at the wavelength of 400-1200nm;
4. The green body has appropriate porosity and high-strength characteristics.
Physical Properties of Alumina Ceramic
Color
White
Density
3.1Mg/m⊃3
Porosity
22%
Bending strength
170Mpa
Thermal expansion coefficient
7.9×10-6--/С (200～500℃)
9×10-6/С（200～1000℃）
