Laser Pump Chambers | Ceramic Diffuse Cavity Reflectors
- Product Item : 10-024
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Dimension: 18*28mm
- Application: Medical Laser System
Laser Pump Chambers | Ceramic Diffuse Cavity Reflectors

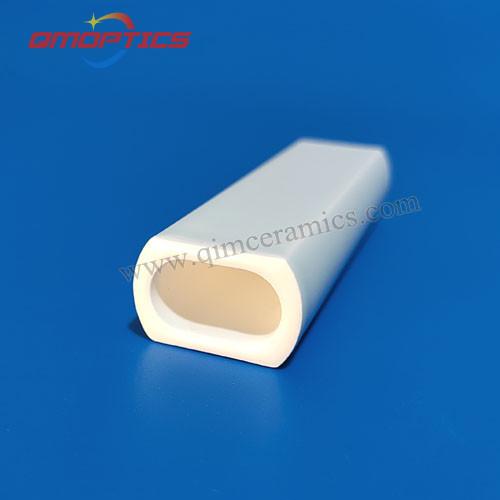

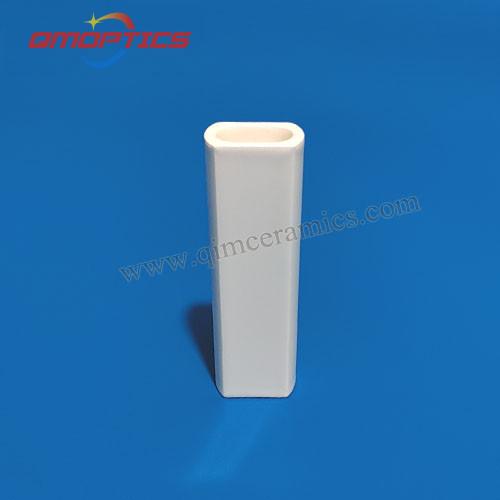

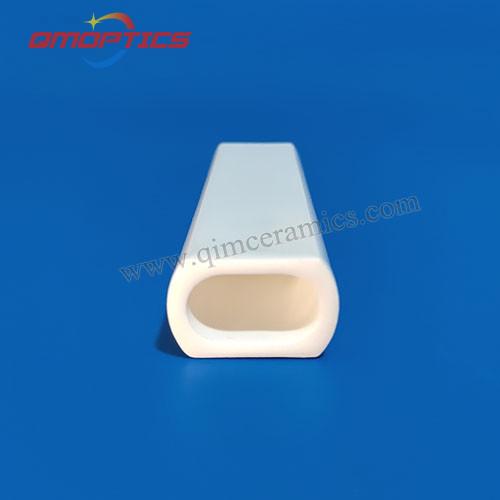

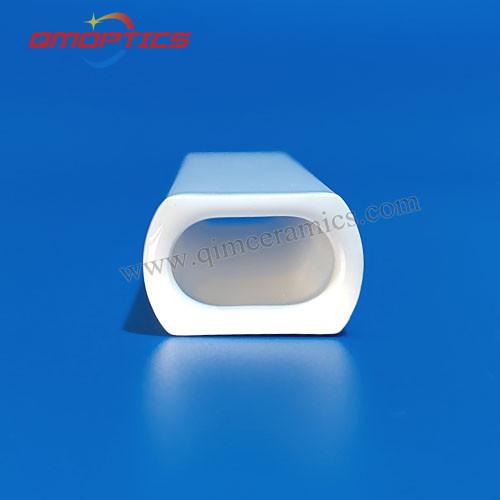

This ceramic diffuse cavity reflector is used in the laser pump chambers. It use non geometric optical reflection imaging to uniformly reflect pump light onto the laser working material, thereby maximizing energy transmission and optimizing the laser beam output. Its good thermal stability ensures the efficient heat dissipation, its durability ensures the long service life of the laser system.
We custom design, research and manufacture ceramic diffuse reflectors according to customer’s requirement. Please contact us for more details!
We custom design, research and manufacture ceramic diffuse reflectors according to customer’s requirement. Please contact us for more details!
Product Parameters:
Product Name
Ceramic Diffuse Cavity Reflectors
Material
Alumina Ceramic
Purity
99%
Dimension
18*28mm
Length
75mm, 90mm
Surface
Full glazed
Color
White
Reflection type
Diffused
Condition
Brand New
Application
Medical Laser System
Product Features
• Easy to produce
• Low production cost
• Large size
• Multi-functionality
• Mass production
Main Physical Characteristics
|
Material |
Alumina ceramic |
|
Purity |
99% |
|
Color |
White / Yellow |
|
Bulk Density (fired) |
3.1g/cm3 |
|
Porosity |
22% |
|
Surface Treatment |
Non-glazed, Semi-glazed, Glazed, Yellow glazed |
|
Bending Strength |
170MPa |
|
Thermal expansion coefficient |
7.9×10-6/C (200-500℃) 9×10-6/C (200～1000℃) |
|
Thermal shock resistance |
No crack when temperature from 15-100℃ for 150 times |
