Curved Ceramic Reflector Plates | Two-Piece System
- Product Item : 10-020
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Full glazed
- Minimum Order Quantity: Negotiable
Curved Ceramic Reflector Plates | Two-Piece System

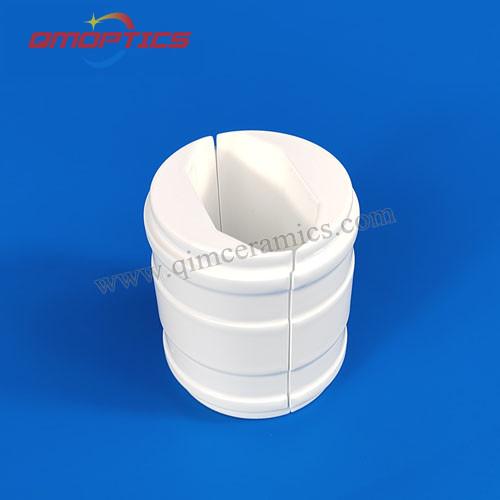

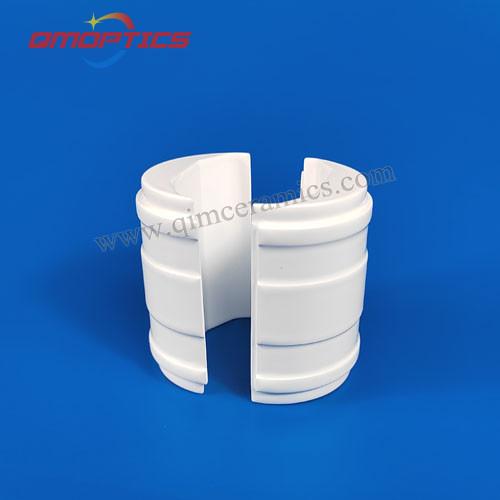

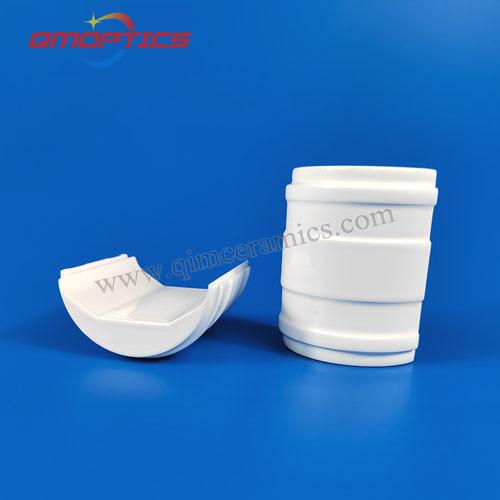

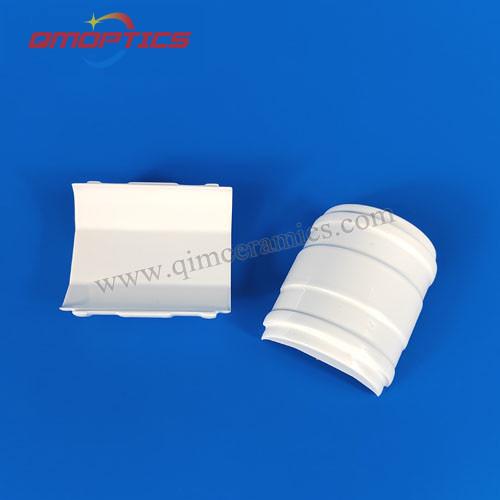

Curved Ceramic Reflector Plates, Laser Pump Cavity, Laser Pump Chamber, Ceramic Diffuse Reflectors, Diffuse Laser Cavity ReflectorThis ceramic laser reflector cavity is in two-pieces system. Both curved ceramic plates are full glazed for better reflectivty, high precision for good fitting. The upper and lower groove edges are tightly adhered to form a circular reflective cavity.
Main Physical Characteristics
Material
Alumina ceramic
Purity
99%
Color
White
Bulk Density (fired)
3.1g/cm3
Porosity
22%
Surface Treatment
Glazed
Bending Strength
170MPa
Thermal expansion coefficient
7.9×10-6/C (200-500℃)
9×10-6/C (200～1000℃)
Thermal shock resistance
No crack when temperature from 15-100℃ for 150 times
Product Features
• Fully glazed surface for maximum reflectivity and easy cleaning• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
• Diffuse reflection for better working performance
