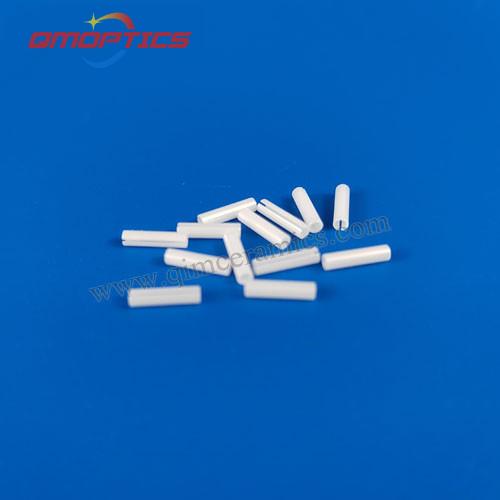

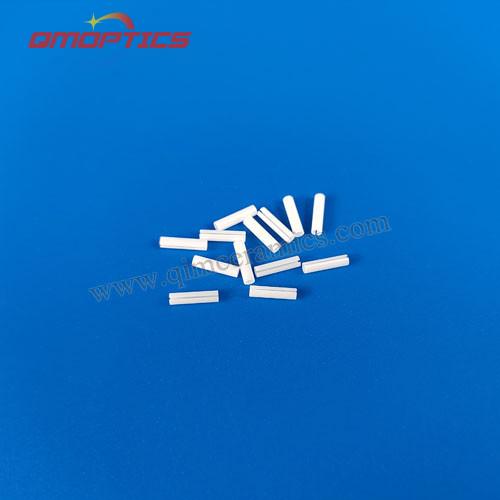

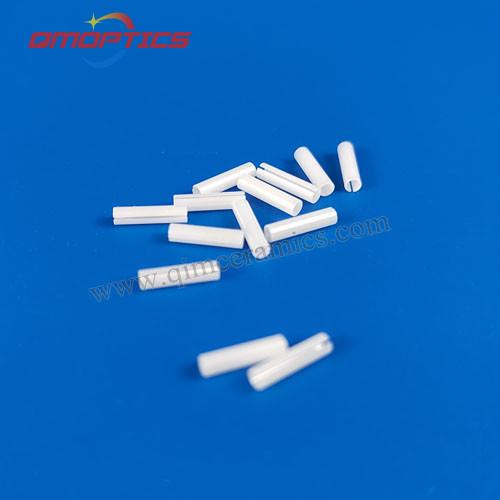

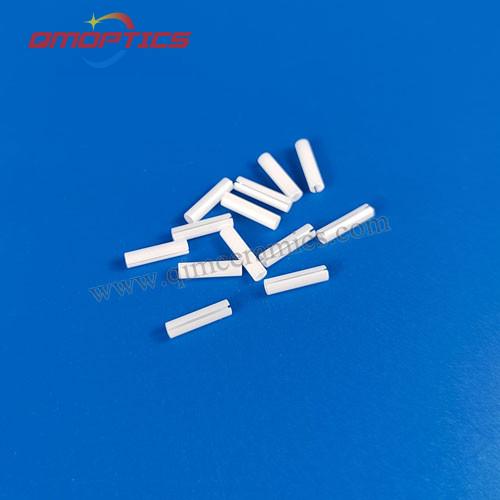

Ceramic Connectors Fiber Optic Ceramic Ferrules Diameter 1.64mm
- Product Item : 30-004
- Category： Ceramic Ferrules
- Material: zirconia ceramic
- Hardness (HV): 1200MPa
- Operating Temperature: ≤1350℃
- Application: Optical Fibers
Ceramic Connectors Fiber Optic Ceramic Ferrules Diameter 1.64mm
The zirconia ceramic ferrules are used in optical adapters and receptacles. We provide all kinds of high precision zirconia ceramic ferrules for LC, SC, ST and SMA adapters. The zirconia ceramic ferrules are available as split ferrules and solid ferrules.We also provide ceramic ferrules with special configurations such as tapered or chamfered lead in ends, and we supply custom ceramic ferrules for optical modules and devices. All zirconia ceramic ferrules are produced to meet your specific application requirements.
Description
Product Features
• High Durability
• Superior withdrawal force
• Split sleeves for adapters
• Solid sleeves for optical module
• Custom designs
Material Properties of Zirconia ceramic (ZrO2)
Unit
Value
Density
g/cm3
6.05
Water Absorption
%
0
Thermal Expansion Coefficient
10-6 /k
10.5
Young's Modulus of Elasticity
Gpa
210
Poisson's Ratio
/
0.3
Hardness (HV)
MPa
1200
Bending Strength (Room Temperature)
MPa
950
Bending Strength (700℃)
MPa
210
Compressive Strength (Room Temperature)
MPa
2000
Fracture Toughness
Mpa.m1/2
10
Thermal Conductivity (Room Temperature)
W/m.k
2
Specific Resistivity (Room Temperature)
Ω.mm2/m
＞1015
Operating Temperature
℃
≤1350
Acid and alkali Corrosion Resistance
/
Strong
Other Dimensions In Stock
* For other dimensions, please contact our customer service.
Type
OD (mm)
ID (mm)
L (mm)
LC Split ferrules
1.8±0.02
1.245±0.002
4.9±0.1
Split ferrules
3.2±0.02
2.496±0.002
7±0.1
Split ferrules
3.2±0.02
2.496±0.002
10.1±0.1
SC Split ferrules
3.2±0.02
2.493±0.002
11.4±0.1
Solid ferrules
3.5±0.02
2.49±0.002
6.4±0.1
Split ferrules
3.6±0.02
2.496±0.002
5.2±0.1
SMA Split ferrules
4.1±0.02
3.16±0.005
14.5±0.1
