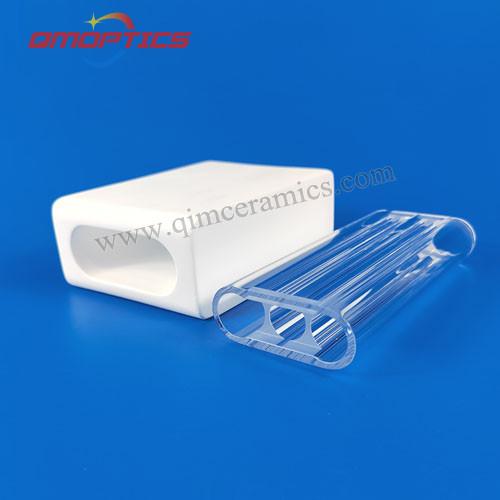

Ceramic Laser Reflector for Candela Quartz Triple Bore
- Product Item : 10-019
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: non-glazed
- Application: Candela Medical lasers
Ceramic Laser Reflector for Candela Quartz Triple Bore
This ceramic laser reflector is used for Candela laser head, assemblied with quartz triple bore and flow tubes. Its uniform diffuse reflection makes its performance excellent when working.
• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
• Diffuse reflection for better working performance
• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
This ceramic laser reflector is used for Candela laser head, assemblied with quartz triple bore and flow tubes. Its uniform diffuse reflection makes its performance excellent when working.
The Ceramic Laser Reflector is based by doping 99% Al2O3, and the body is fired at an appropriate temperature to retain appropriate porosity and strength.
Product Features
• Fully glazed surface for maximum reflectivity and easy cleaning• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
• Diffuse reflection for better working performance
Main Applications
• Laser Welding Machine,• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
