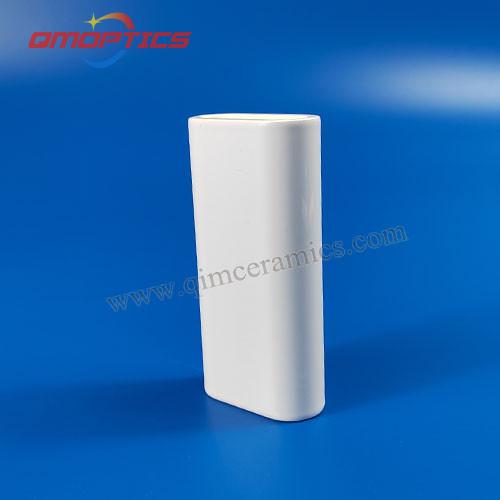

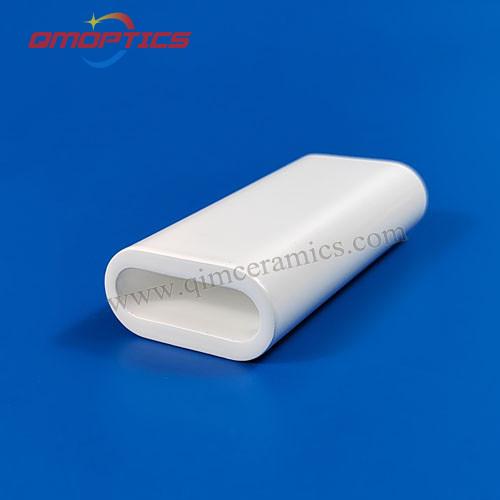

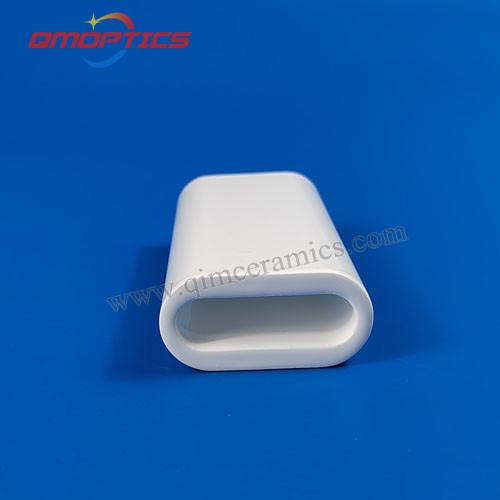

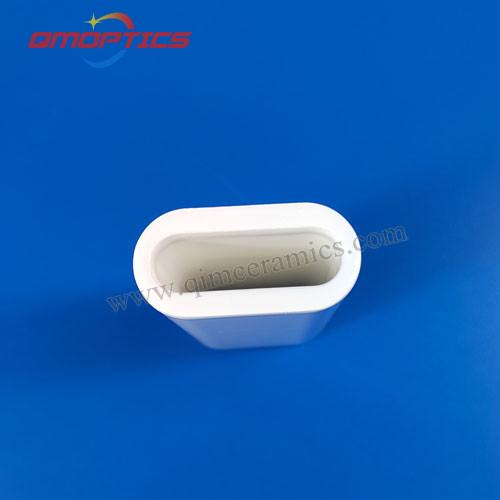

Laser Pump Cavity | Ceramic Diffuse Reflectors
- Product Item : 10-012
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Full glazed
- Application: solid state lasers
Laser Pump Cavity | Ceramic Diffuse Reflectors
The laser pump cavity reflector body is prepared by doping 99% Al2O3, and the body is fired at an appropriate temperature to retain appropriate porosity and strength. The surface of the reflector adopts a fully glazed high reflectivity ceramic glaze process, which has the biggest advantage over gold-plated reflectors in terms of its long service life and diffuse reflection characteristics. We have the capability to custom design and manufacture the laser pump cavity . The product is in high precision, high reflectivity and long service life.Main Physical Characteristics
Material
Alumina ceramic
Purity
99%
Color
White
Bulk Density (fired)
3.1g/cm3
Porosity
22%
Surface Treatment
Non-glazed, Semi-glazed, Glazed, Yellow glazed
Bending Strength
170MPa
Thermal expansion coefficient
7.9×10-6/C (200-500℃)
9×10-6/C (200～1000℃)
Thermal shock resistance
No crack when temperature from 15-100℃ for 150 times
Product Features
• Fully glazed surface for maximum reflectivity and easy cleaning• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
• Diffuse reflection
Spectrum of Reflection
Main Applications
• Laser Welding Machine,• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
Working Temperature
It is best not to keep the working temperature of glazed ceramic reflectors above 300℃ for a long time, otherwise crystallization may occur.The working temperature of non glazed ceramic reflectors can be 1200℃.
Precautions for Use
1. Ceramic laser pump cavity must not be severely damaged by external forces during transportation, storage, and assembly, such as falling off to the ground, forcefully pressing into the pipe shell due to inappropriate size, etc;2. The semi glazed laser pump cavity must be sealed with the tube shell to prevent the ceramic reflector from inhaling a large amount of coolant, which may cause a decrease in power;
3. During assembly and maintenance, it is forbidden to scratch the ceramic reflective surface, which may cause a decrease in reflectivity, and the coolant may easily cause scaling on the ceramic surface during use;
4. When using short wavelength (such as 755nm) high-temperature systems, it is important to pay attention to the selection of cooling system piping and equipment materials to avoid contaminating the ceramic surface with free metal oxides.
Tianjin QM Ceramics is a leading manufacturer of advanced laser ceramic products. The company is committed to the technical research and development, manufacturing and sales of advanced ceramic materials, parts and related products. After more than 10 years of continuous hard work, it has accumulated a lot of industry experience in the advanced ceramic industry.

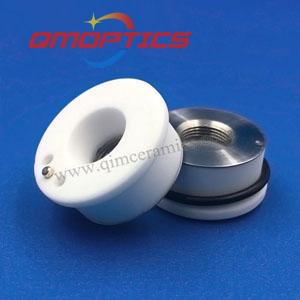

We have successively developed and produced structural and functional ceramic products such as ceramic laser reflectors for laser head, Laser ceramic ring for laser cutting machine, ceramic ferrules for fiber optic connectors etc. And we have the ability to conduct research and development, production capacity for micro ceramic tubes, rod grinding, ceramic processing, and brazing connections of metal materials.
