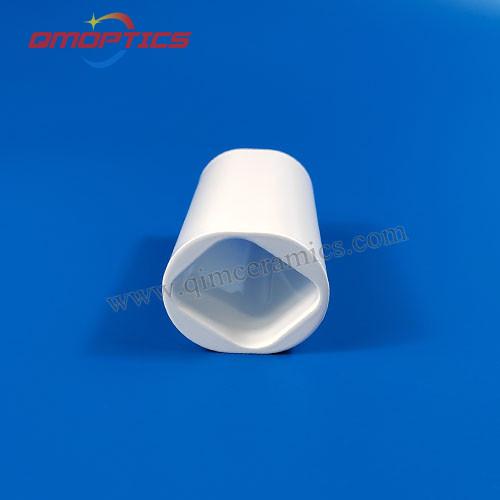

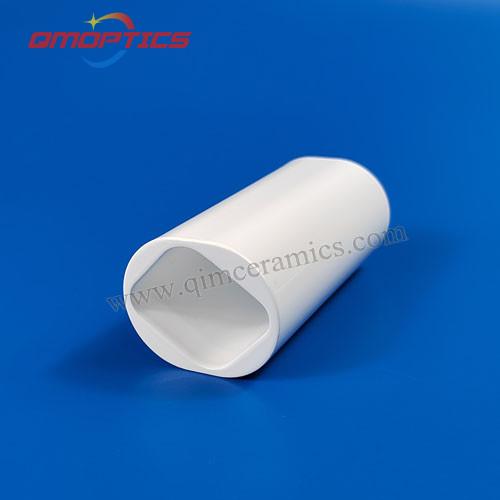

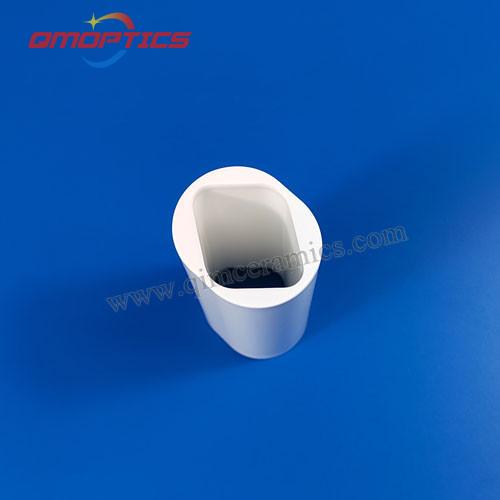

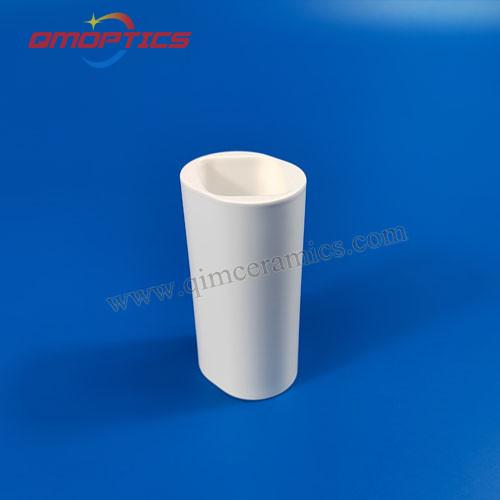

Custom Shape Alumina Ceramic Laser Cavity Reflector |High Reflectivity
- Product Item : 10-011
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Glazed
- Minimum Order Quantity: Negotiable
Custom Shape Alumina Ceramic Laser Cavity Reflector | High Reflectivity
The ceramic laser cavity reflector body is prepared by doping 99% Al2O3, and the body is fired at an appropriate temperature to retain appropriate porosity and strength. The surface of the reflector adopts a fully glazed high reflectivity ceramic glaze process, which has the biggest advantage over gold-plated reflectors in terms of its long service life and diffuse reflection characteristics. We have the capability to custom design and manufacture the alumina ceramic laser cavity reflector. The product is in high precision, high reflectivity and long service life.Main Physical Characteristics
Parameters
Value
Material
Alumina ceramic
Purity
99%
Color
White
Bulk Density (fired)
3.1g/cm3
Porosity
22%
Surface Treatment
Non-glazed, Semi-glazed, Glazed, Yellow glazed
Bending Strength
170MPa
Thermal expansion coefficient
7.9×10-6/C (200-500℃)
9×10-6/C (200～1000℃)
Thermal shock resistance
No crack when temperature from 15-100℃ for 150 times
Production Process
• Raw material preparation• Forming
• Repairing the blanks
• Degreasing
• Firing
• Inspection
• Packing
Product Features
• Fully glazed surface for maximum reflectivity and easy cleaning• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
Main Applications
• Laser Welding Machine,• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System
Working Temperature
Glazed: It is best not to keep the working temperature of glazed ceramic reflectors above 300℃ for a long time, otherwise crystallization may occur.
Non glazed: The working temperature of non glazed ceramic reflectors can be 1200℃.
