Custom Zirconia Ceramic Ferrules | Fiber Optic Ceramic Sleeves
- Product Item : 30-002
- Category： Ceramic Ferrules
- Material: zirconia ceramic
- Hardness (HV): 1200MPa
- Operating Temperature: ≤1350℃
- Application: Optical fibers
Custom Zirconia Ceramic Ferrules | Fiber Optic Ceramic Sleeves

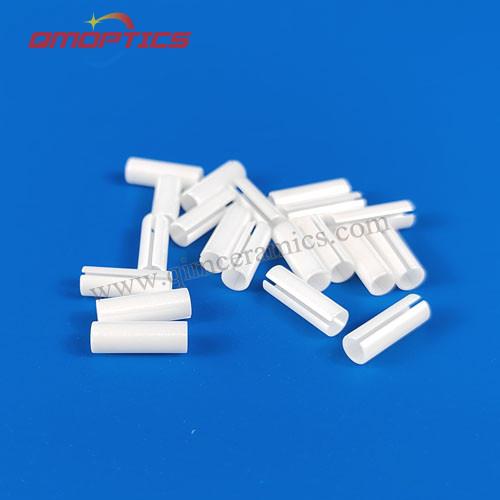

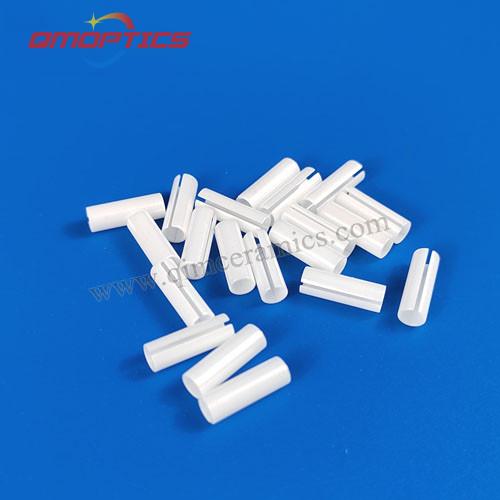

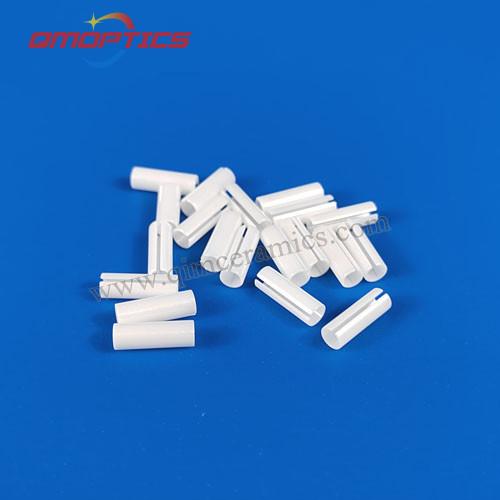

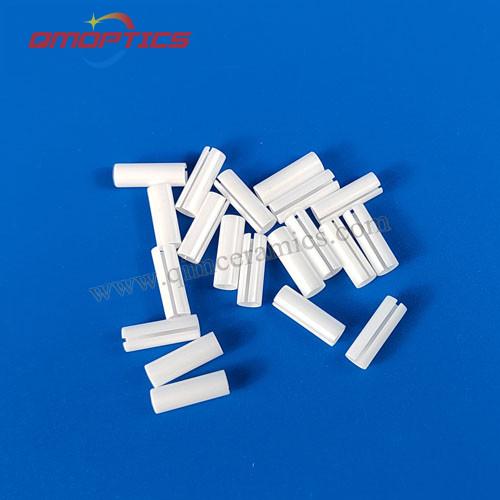

The zirconia ceramic sleeves are used in optical adapters and receptacles. We provide all kinds of high precision zirconia ferrules for LC, SC, ST and SMA adapters. The zirconia sleeves are available as split sleeves and solid sleeves.
We also provide sleeves with special configurations such as tapered or chamfered lead in ends, and we supply custom sleeves for optical modules and devices. All zirconia sleeves are produced to meet your specific application requirements.
Product Features
• High Durability• Superior withdrawal force
• Split sleeves for adapters
• Solid sleeves for optical module
• Custom designs
Material Properties of Zirconia ceramic (ZrO2)
|
Description |
Unit |
Value |
|
Density |
g/cm3 |
6.05 |
|
Water Absorption |
% |
0 |
|
Thermal Expansion Coefficient |
10-6 /k |
10.5 |
|
Young's Modulus of Elasticity |
Gpa |
210 |
|
Poisson's Ratio |
/ |
0.3 |
|
Hardness (HV) |
MPa |
1200 |
|
Bending Strength (Room Temperature) |
MPa |
950 |
|
Bending Strength (700℃) |
MPa |
210 |
|
Compressive Strength (Room Temperature) |
MPa |
2000 |
|
Fracture Toughness |
Mpa.m1/2 |
10 |
|
Thermal Conductivity (Room Temperature) |
W/m.k |
2 |
|
Specific Resistivity (Room Temperature) |
Ω.mm2/m |
＞1015 |
|
Operating Temperature |
℃ |
≤1350 |
|
Acid and alkali Corrosion Resistance |
/ |
Strong |
Other Dimensions In Stock
|
Type |
OD (mm) |
ID (mm) |
L (mm) |
|
LC Split ferrules |
1.8±0.02 |
1.245±0.002 |
4.9±0.1 |
|
Split ferrules |
3.2±0.02 |
2.496±0.002 |
7±0.1 |
|

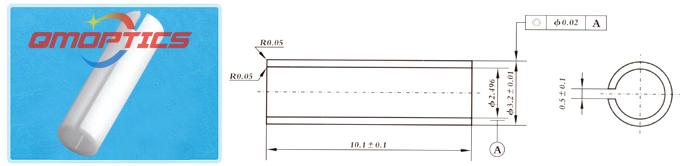

Split ferrules |
3.2±0.02 |
2.496±0.002 |
10.1±0.1 |
|
SC Split ferrules |
3.2±0.02 |
2.493±0.002 |
11.4±0.1 |
|
Solid ferrules |
3.5±0.02 |
2.49±0.002 |
6.4±0.1 |
|
Split ferrules |
3.6±0.02 |
2.496±0.002 |
5.2±0.1 |
|
SMA Split ferrules |
4.1±0.02 |
3.16±0.005 |
14.5±0.1 |
