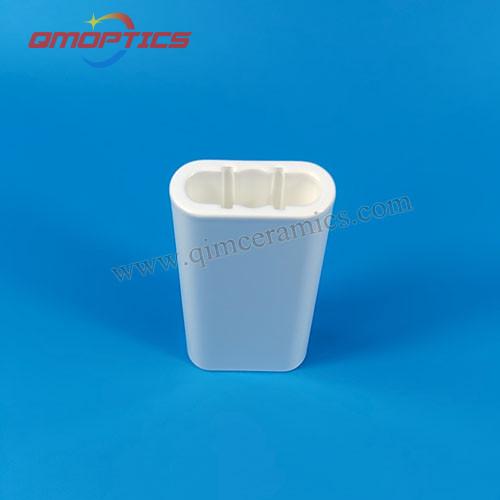

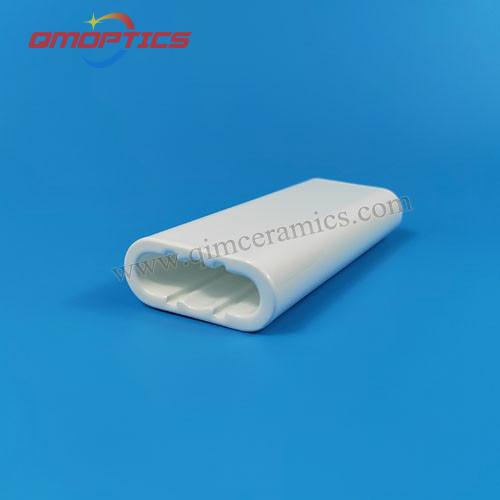

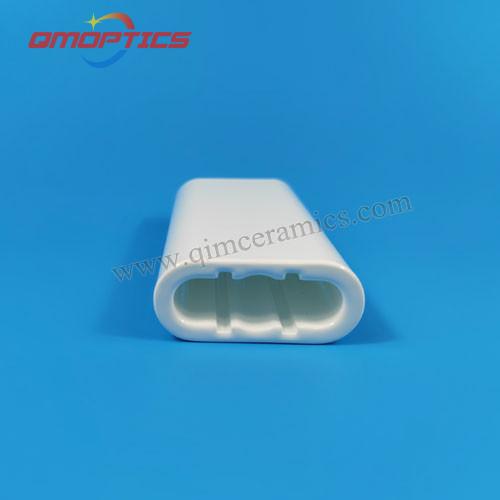

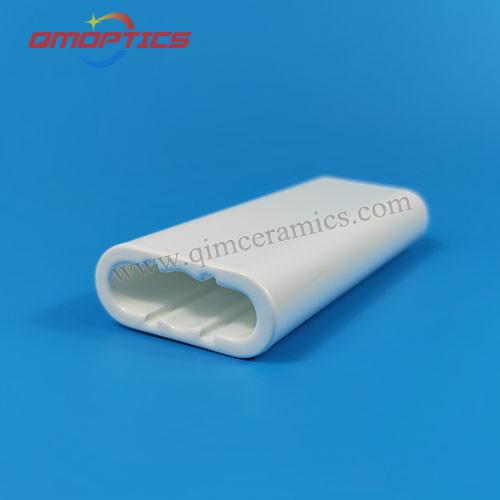

Ceramic Laser Reflector for Finemec Orion Laser System
- Product Item : 10-006
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Full glazed
- Feature: Diffused reflectance
Ceramic Laser Reflector for Finemec Orion Laser System
The ceramic laser reflector is used for Finemec Orion. Ready to ship anywhere in the world. It is premium quality with good diffuse reflectance.Product Parameters
Product name
Ceramic laser reflector
Material
Alumina Ceramic
Purity
99%
Surface
Full glazed
Feature
Diffused reflectance
Length
99mm
Condition
Brand New
Application
Finemec Orion Laser System
Product Features
1. The surface is fully glazed for high reflectivity and easy cleaning;2. The reflectivity reaches 98% at the wavelength of 600-1000nm;
3. The reflectivity exceeds 96%at the wavelength of 400-1200nm;
4. The green body has appropriate porosity and high-strength characteristics.
Physical Properties of Alumina Ceramic:
Color
White
Density
3.1Mg/m⊃3
Porosity
22%
Bending strength
170Mpa
Thermal expansion coefficient
7.9×10-6--/С (200～500℃)
9×10-6/С（200～1000℃）
