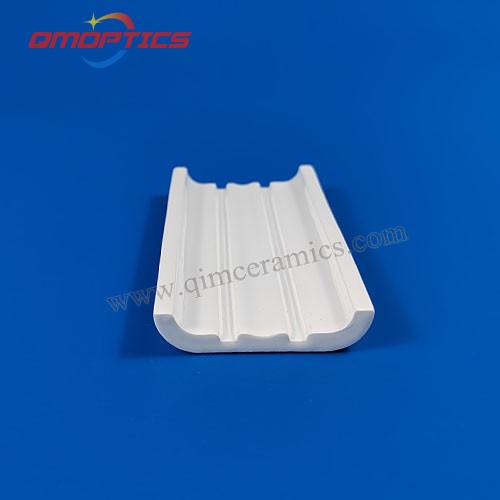

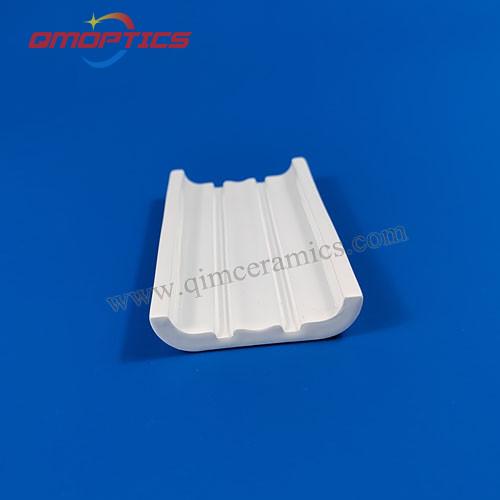

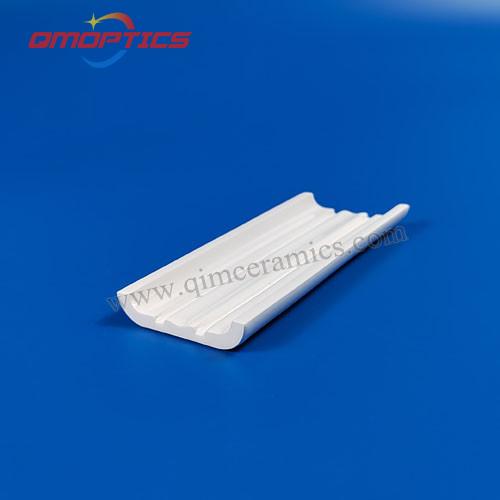

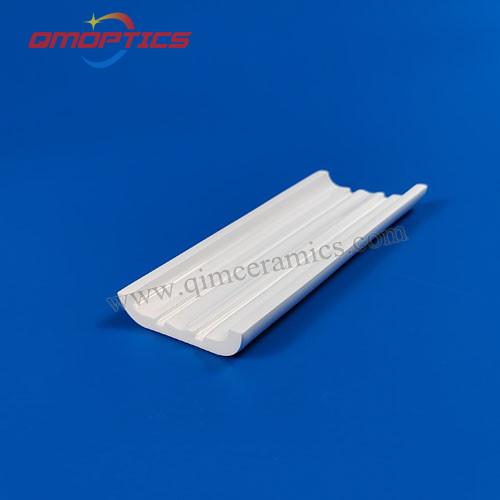

Glazed Ceramic Laser Reflector Plate
- Product Item : 10-017
- Category： Ceramic Laser Reflectors
- Material: Alumina ceramic
- Purity: 99%
- Surface: Full glazed
- Minimum Order Quantity: Negotiable
Glazed Ceramic Laser Reflector Plate
The Glazed Ceramic Laser Reflector Plate is based by doping 99% Al2O3, and the body is fired at an appropriate temperature to retain appropriate porosity and strength. The surface of the reflector adopts a fully glazed high reflectivity ceramic glaze process, which has the biggest advantage over gold-plated reflectors in terms of its long service life and diffuse reflection characteristics.Product Features
• Fully glazed surface for maximum reflectivity and easy cleaning• Reflectivity reaches 97% at wavelengths of 600-1000nm
• Reflectivity exceeding 95% within the wavelength range of 380-1100nm
• The green body has appropriate porosity and high strength characteristics
• Diffuse reflection for better working performance
Main Applications
• Laser Welding Machine,• Laser Cutting Machine,
• Laser Marking Machine,
• Medical Laser System

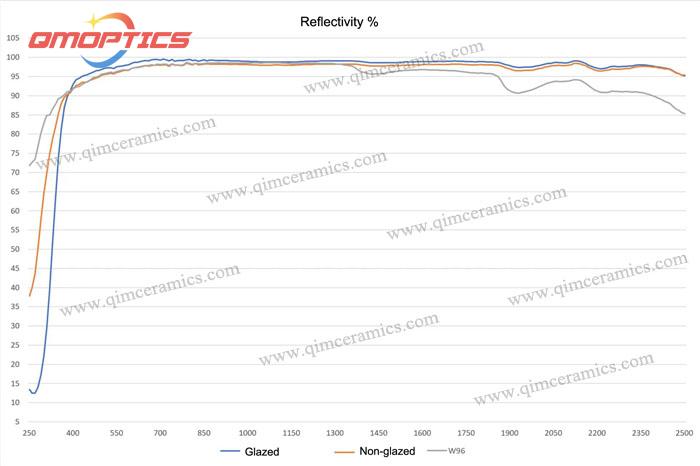

Reflection Spectrum
